Here is the guide for reassembling your torn apart Nokia Lumia 1020. By Following this step by step guide, you can quickly rebuild your phone.
Click here to see how to take apart the Nokia Lumia 1020
Click here to see how to take apart the Nokia Lumia 1020
Step 1:
Put back the motherboard to the rear housing assembly.
![Nokia Lumia 1020 reassembly 1](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_tA-eXnEjdaOP4m8JjZRnyipY6W0f1BVypsQ1w2TcJic0UMeqMWndmBDGAYlWLXZKElBQ_o_K1eURSBHj3dBa0-tfGHvnSG9_cFtQRIrrUoPPfkeIdz6-30B2IFrkqZIl5bQ8MZ=s0-d)
Step 2:
Put back 2 Torx screws on the bottom of the motherboard.
![Nokia Lumia 1020 reassembly 2](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sYE_XvdZZ68_3o1vhBOlThh3xgjNRLnSlJOr7HGGK6h6EsG8RXt7x8WVOjTyf-K6SmahPFjQXcq0XjCu_lMuA5bo97QeKRibxB6qu1D7ys5wkFs4FaMgYORk-Jj8sQWMsb0CL7=s0-d)
Step 3:
Reconnect the microphone connector.
![Nokia Lumia 1020 reassembly 3](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sZmXVIe0TC5wcU4s3bNBs3_4Moq2ZuWFEp20UUOPlb9jkjh4gtF28POCmERbqJOMDe4fZYXcCt2aM5oO4Hf55NA7W6C2ncOGgqBFaD4X_SA7FtmjQUF9-LkuxIWwnUnyESh3Gi=s0-d)
Step 4:
Fasten these 2 screws.
![Nokia Lumia 1020 reassembly 4](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sz8DWlqyHjehiP5yLdGCZHd6EJeQjZLjBNrxs30z38tyXVZ0FH2d6kjruqmHgvrJ2M4atEhx-jod9rMSykwcnJBRrzjcoHuGwb0gAXg_nQ28amjaTM-7ENu3WpsiShJGYZVPUX=s0-d)
Step 5:
Fasten the Small Phillips Screw on the top.
![Nokia Lumia 1020 reassembly 5](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sEc8XwFdfzQhUBuI14vDDwfSuI-67IJEdL-uq6_7UYbao0k8k3ypDHBDTECM0mftUUr1_wcmAkNzLy23rMDGW0ca5KzSLUn1Q3o-i_NTCMELjUdaZuB8Tn6RYroCwWw2YYZ9I=s0-d)
Step 6:
Connect the side key flex cable.
![Nokia Lumia 1020 reassembly 6](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_vCmZvDYvk34_hURmM-MfEs9zKFSnlySyAenmxOiyxlxC4o91F5KYFBt116tT4BJDZNhoeOfC-26MdXA7_C4dRTzDHs9hp1rWVD487-NmiyS2UKl8JgkjdRoIcv9zPowOIqx1Xo=s0-d)
Step 7:
Connect the rear facing camera.
![Nokia Lumia 1020 reassembly 7](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_s6NYEuabxQIwas-GTjVUsMok_1Vz18OZVfWinjzr_mqLYXJmyzpKbe92eDr0jLKMPc669nRgP-rBd3dQfcjYbVNOYDvv7vKXuMp38foTswKt8DdXyQd3LaumbwNSOJ8VxF4Yk=s0-d)
Step 8:
Put the rear facing camera back to its position.
![Nokia Lumia 1020 reassembly 8](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_tNdAYySf1Q9oHiqos4HNFmw6fgnklStmGOQzYtoA-YuIu9D9uBlo-o1GWQI7CnTXQkHZs7ZSlkKGFKd_bVgUiufmOXW2WiF04QOulKjMRvdUCVrM2N7CMf5uWBwwu1CCXVthA=s0-d)
Step 9:
Reassemble the battery
![Nokia Lumia 1020 reassembly 9](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_uxpdBbSHiORE6nKy2eMiHsrxQs-7ym0ivYu_l7l3zMAYTOZt_mGOPdB3SSmiTsVgbtYExQ9_8zNOeFaeXg9fy0Kg-zTn7_TKzrWSD8xgijWCjxXxfuIQ3OvddRByJNPaaYvvuf=s0-d)
Step 10:
Put back the camera and battery retaining bracket.
![Nokia Lumia 1020 reassembly 10](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_tLDe-PQpQ-r-rWjEZ2By2wB29O4nc5sqNzytxK8kEWWihCO78Jkzn2jLUbXdOQD6ZysrAuxODPBnTI8pvGZX3uGUi7FIbCxekbMvcdccknDlcLY3cqb2bSPOzerjl_juXIcTBHDQ=s0-d)
Step 11:
Fasten it with 3 screws.
![Nokia Lumia 1020 reassembly 11](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sgp_uYn9xWcaYjRxZsYsC0iWbRaytWmfSL8hkRuUTl-h3uvWSFj-Ff2lX0pieeyE12lH_J1RmICyyqpSsMSGdVb2X8lJBDsjJdj9sqCavpFaTncGdCgQ6LNFDTg65keyZ6LZfYeg=s0-d)
Step 12:
Put back the screen locking mechanism.
![12](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_v6A1xLYihqMVEVdal95paL1PgWWNLVOrvXrLIfmf__FxjzKzxw-vW20JpE883XURv-7HeHjLRTDz3QhkZMooZ8uP6MiFyxUqJD2tEqeGePTdrxmAgi0k_MEQ6xUw9uZz3u92VX=s0-d)
Step 13:
Connect the main screen connector.
![Nokia Lumia 1020 reassembly 13](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_vG7IUwrfXWR8pPWvb6bOtQDNqvR5wgQhZZoyLZw90nVI2GAlA-xNhZwIdDdrVzLGbEOEE1-5cmFeGx0rjbe8me4tm87WqQzL474Y1tvZ7aaTK9n7BG59F7ocapYbJkoRpyy3_W5Q=s0-d)
Step 14:
Reconnect the proximity and front facing camera flex cable.
![Nokia Lumia 1020 reassembly 14](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_s8YDB6L2WowcnM31gqnch2OJkICKznqyLe6VGJlZokupBeoPuaOn9uqMwemj0oOSTHYMp5eDqm9b96ZuSL1e37CNpTGux40-QhlpNDi-GFOw2iqTcKWLF25TZleR2L26fPl7H0WA=s0-d)
Step 15:
Put the screen into the frame from side.
![Nokia Lumia 1020 reassembly 15](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_tgVyA53hXp-BADGgqBrrbpYJRLMEglgyWmoyzCU-DQ8Sj6V4SBqSDJjHu6Pt_eMRc-jXeasvTAHVre1yMG-2WrP98WnyURExmmGf9pWaS9yrsAvRiy4ENik8qO5WK6BCUEHG7ebw=s0-d)
Step 16:
Plug the battery connector.
![Nokia Lumia 1020 reassembly 16](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_tqw7GH2IeKZUA7kWEexPA7a8F7YDvpQTo9YmlHCjcd6WDfFSSs3JZVEQArCbAhp9XcTRKuXDRYDVk62FHASc9Mxljr89hD4NCVJl5JRcFTc28GU3XBCQArpbkGvzF2sjE9kDrRVA=s0-d)

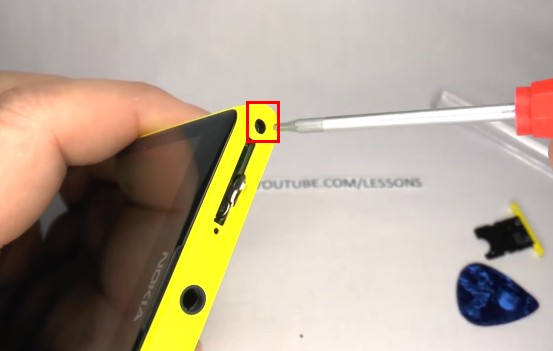

Step 17:
Fasten the screw.
![Nokia Lumia 1020 reassembly 17](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sLI4qIDmB_4gPoMiXWGFrvbiK_eJgab9DXDIwJKpGa-2xBk1r8HfE41CKJZT5BzNv5Wc5OOYFg6fR_J1b_-blIJ0_ygrmhqfKd_opcbWJOQjm5bkWv6cFC0zSSxCqSdi0v7Up84Q=s0-d)
